Summary

METHODS
A modular structure of the metallic vaginal speculum, which we use in our routine practice, can be easily separated from the handle of the speculum, has been designed and produced with a 3D printer from PEEK material with a layer thickness of 200 µ. Dosimetric measurements of speculum tongue made of PEEK material were made using two different dosimetric methods (three different techniques as the treatment planning system ACUROS BV and TG43 algorithms, and the Radiochromic Film Dosimetry system [Gafchromic: EBT3]).

RESULTS
The values obtained by all three methods were correlated with each other and the speculum did not affect negatively dose distribution in the dose-distance curves. The dose values obtained by using ACUROS BV and TG43 algorithms at the Dwell position and the dose values obtained in the Gafchromic dosimetry measurements made at these points were found to be correlated with each other (ACUROS BV vs. TG43 p<0.001, ACUROS BV vs. EBT3 p=0.008, TG43 vs. EBT3 p=0.006).

CONCLUSION
When all the measurement results were examined, it was seen that the values obtained were correlated with each other, and no negative effect of the speculum on the dose distribution was observed in the dose distance curves.

Introduction

The purpose of brachytherapy treatment is to place radioactive sources near or inside the tumor. This ensures not only increased dosage in the targeted tissues with tumors and improvement of overall survival through local control but also reduced dosages for the bladder, rectum, sigmoid, and other organs at risk (OARs) beyond or near the target.[3] To this end, while radiophysical properties (such as the inverse square rule) of radioactive sources or brachytherapy are exploited, certain manipulations are employed to keep OARs away from the radioactive source or various applicators may be used for the same purpose.[10]

Brachytherapy procedure generally lasts 1.5-2 h and might be implemented under general or spinal anesthesia as the process of placing the applicators inside the cervix, endometrium or tumor may be accompanied by pain or anxiety. During this process, the patient is supposed to lie down and hold still. In brachytherapy applications, it is crucial to select the correct applicator, place it correctly, and then, keep OARs away from the radioactive source. For this purpose, a stainlesssteel vaginal speculum that is available in the market and routinely used is fitted before the applicators are placed into the cervix and uterus. Then, the packing of the vagina is performed using the gauze dipped into normal saline to keep away the bladder in the front and the rectum at the back. After this process is completed, the vaginal speculum which has a modular structure is split into two parts the upper and lower parts, and pulled outside of the vagina.[10] However, the spoonshaped structure of the lower and upper blades poses the greatest problem for the implementer. This spoonshaped structure may cause the gauze placed inside the vagina to be removed as the speculum is pulled outside, damaging the packing.

Polyetheretherketone (PEEK) is one of the outstanding polymers in the semi-crystalline thermoplastic polymer class. Today, PEEK is available in various forms such as fiber, film, resin, fabric, cable, membrane, and composite. Chemically, the PEEK polymer consists of repeating units of one ketone group and two either groups, and it is durable and biologically compatible thanks to its fully aromatic, highly stable, and linear structure that contains only carbon, hydrogen, and oxygen atoms.[11]

The starting point of this study is the possibility of replacing the metal speculum with PEEK so that it can be left in place during gynecologic brachytherapy procedures. Hence, this project aims to modify the vaginal speculum that is currently available in the market and routinely used in daily practice by producing the lower and upper blades of the vaginal speculum using a PEEK material and performing dosimetric measurements, and testing the feasibility of the resulting modification for brachytherapy applications.

Methods

Fig. 1. Vaginal speculum tongues made of PEEK material.
PEEK: Polyetheretherketone.

Design and Production of the Test Apparatus For dosimetric measurements regarding the radiation permeability of the produced speculum blades, a phantom apparatus was designed and produced with a width of 8×10 cm and a height of 12 cm using the glass material. A guide and locking mechanism were produced from polylactic acid using an Intamsys Funmat HT 3D printer to ensure that the speculum blades and radioactive source can be secured inside the apparatus (Fig. 2a, b).

Fig. 2. (a) Sagittal section of the designed experimental setup, (b) Transverse section of the designed experimental setup.

Performing Dosimetric Measurements
Two different dosimetry methods (treatment planning system (TPS) and Radiochromic Film Dosimetry System (GAFChromic: EBT3)) were used to perform dosimetric measurements of the blades of the vaginal speculum produced from the PEEK material, and the values calculated using these two methods were compared to each other.

Measurements Made using the TPS
The Eclipse TPS (Version: 15.6, Varian Medical Systems, Palo Alto, United States of America) was used as the TPS. In dosimetric comparisons, computed tomography (CT) (Siemens Somatom AS, Siemens Healthineers, Erlangen, Germany) of the test apparatus was taken first. The guiding tube (bar) with code no. GM11011180 of the cylinder applicator with code no. GM11011100 of the Varian GammaMed Plus iX brachytherapy device (Varian Medical Systems, Palo Alto, United States of America) was placed at the center of the testing apparatus. To enable measurements with and without the speculum in the test apparatus, one blade of the speculum was placed 2.3 cm away from the applicator to the left of the source and no speculum blade was placed to the other side. This point was chosen because it is the distance at which a dose of 3 Gy is delivered in the TPS. Here, the aim was to perform dosimetric measurements from different directions and compare them. After these processes, water was placed inside the test apparatus as representative of soft tissue. For dose calculations, the Acuros BV calculation algorithm (Varian Medical Systems, Palo Alto, United States of America), which takes Hounsfield units in TG43 and CT images, into consideration, was used. Dose values at the specified points at the sides with and without the speculum (the points where GAFChromic films will be placed) on the images sets obtained from CT were recorded using the beam data and calculation algorithm belonging to 192lr (t1/2: 73.827 days) previously loaded into the system. On both sides, the points were set 5.02 (LEFT), 4.07 (RIGHT), 4.07 (DOWN), and 3.95 (UP) cm away from the source and 5 cm away from the table plane to minimize the scattered photon effect on the measurement results.[12] The measurement points were different from each other due to the structure of the prepared setup and the source could not be placed in the midline. A single source position was set on the applicator and the height of this position was adjusted to be located at the center of the measurement points. Using the Acuros BV planning algorithm, a treatment plan was made to obtain a dose of 3 Gy at the measurement point on the left side containing the speculum blade. The irradiation duration, obtained here, was also used in the TG43 planning algorithm where the same CT image sections were used.

Radiochromic Film (GAFChromic Film) Dosimetry Calibration and Measurements Made
In the dosimetric measurements made using Radiochromic film (Ashland Specialty Ingredients, Bridgewater, NJ, United States of America), first, the calibration curves of these films were obtained. To this end, the Varian GammaMed Plus iX model brachytherapy device (Varian Medical Systems, Palo Alto, United States of America), located at the Radiation Oncology Department of the Faculty of Medicine Hospital of Eskişehir Osmangazi University and contains a 192Ir radioactive source, was used. For the calibration of the radiochromic films, the films were cut into a size of 2.5 cm×2.5 cm. The films were cut using scissors and the films were handled using gloves to avoid any stains on film surfaces. The cut radiochromic films were categorized into two groups as irradiation and control. The irradiation group consisted of the films to be irradiated at the brachytherapy device. The films in the control group were not irradiated, and they were used to eliminate the tarnishing resulting from the ambient radiation in radiochromic films during the time between irradiation and scanning. Both groups of films were read in an Epson Expression 11000XL scanner (Epson Seiko Corporation, Nagano, Japan) to get a minimum lateral scattering effect before moving to the irradiation process.[13] To minimize the reading uncertainty resulting from the scanner, the scanning surface of the scanner was cleaned before the reading process, and it was opened 15 min before the scanning process. After the film readings were completed, the test apparatus was set up and CT was performed before being transferred to the TPS. The test apparatus was set using the approximate water equivalent solid phantoms (RW3 Slab Phantom, PTW-Freiburg, Freiburg, Germany) to ensure sufficient backscattering and the guiding tube with code no. GM11011180 was placed at the center of these phantoms. The TPS was used to determine dose values at different distances. A total of 8 dose values were determined and these dose values were in the range of 1.0 and 6.0 Gy including the 3-Gy dose value, which is the dose value in the irradiation to be performed using the speculum. After these processes, radiochromic films were placed at the designated distances, and irradiation was performed for the duration calculated using the planning system. Following the irradiation, the film was kept still for 48 h for the slowdown of polymerization on the film before the scanning process.[14,15] Both the irradiated films and the control films that were not irradiated were scanned approximately 48 h after the irradiation process. A red channel was used for the scanning. The mean pixel values of 5 different Regions of Interest of each film were determined with the Image J software program (National Institutes of Health, 1997) using the images obtained. Using the formulas, (a), (b), (c), (d), and (e) the optical density (OD) values corresponding to the doses were calculated (Figs. 3, 4).[14]

Fig. 3. Control and irradiated GAFChromic films used in GAFChromic dosimetry.

Fig. 4. Measurement of control and irradiated GAFChromic films in GAFChromic dosimetry.

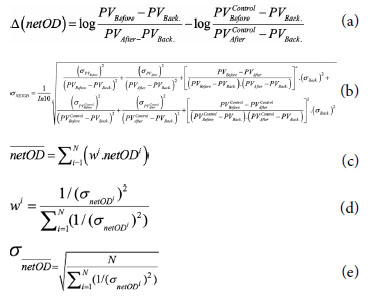

The values obtained were used to draw dose versus OD calibration curves. The calibration curves were later used to measure dose values from the measured OD values of the tarnishing on the film as a result of experimental irradiation.

Following the calibration of radiochromic films, the test apparatus, described above, was used to perform the irradiation of radiochromic films on the brachytherapy device at the sides with and without the speculum.

The speculum blades manufactured from the PEEK material were placed inside the measurement apparatus and their CT images were taken for planning purposes. The CT sections obtained were transferred, and two different brachytherapy applications were prepared using ACUROS BV and TG43 algorithms at the same source position and for the same duration (Figs. 5, 6). In the planning stage, the aim was to create a minimum dose of 3 Gy at the farthest measurement point, and an irradiation duration of 631.1 s was calculated for the single source Dwell position in the planning made using the ACUROS BV algorithm for this purpose. The activity during the irradiation was 11.086 Ci.

Fig. 5. Dose color wash and isodose distributions, ACUROS BV algorithm.

Fig. 6. Dose color wash and isodose distributions, TG43 algorithm.

In the brachytherapy planning made using two different algorithms, the irradiation was performed, and film dosimetry was conducted without changing the test apparatus and ensuring that GAFChromic films were placed to align them with the source. The dose values obtained from the TPSs using two different algorithms and the two different irradiations for the duration obtained from the planning and the mean values of two different assessments for each are given in Figure 7.

Fig. 7. Schematic view of dose values obtained with three different measurement methods.

Statistical Analysis
Categorical variables were described as counts and percentages (%), whereas continuous variables were described as means (±standard deviation). The correlations (r values) were assessed using Pearson's correlation coefficient. All tests of significance were two-tailed with p<0.01.

Results

Fig. 8. Dose distributions in four different directions with the ACUROS BV algorithm according to the source.

Fig. 9. Dose distributions in four different directions with the TG43 algorithm according to the source.

Fig. 10. Dose distributions with three different measurement methods.

The correlation of the doses obtained using the ACUROS BV and TG43 algorithms at the points determined at the level of the Dwell position of the radioactive source and obtained from these points using the GAFChromic dosimetry method was performed, and it was found that the values obtained using each of three methods were correlated to each other (p<0.001 for ACUROS BV vs. TG43, p=0.008 for ACUROS BV vs. GAFChromic Film, p=0.006 for TG43 vs. GAFChromic Film) (Table 1).

Table 1 Correlation of dose values obtained from three different measurement methods

Discussion

Two different dosimetry methods (TPS and Radiochromic Film Dosimetry System [GAFChromic: EBT3]) were used to perform dosimetry, and it was found that the values calculated using the three methods were correlated to each other. Examination of the dose-distance curves revealed that the modified speculum did not have any adverse contribution to the dose scattering, and it has to be supported by trials to mention that the speculum blades produced from the PEEK material can be used for brachytherapy applications. However, there are different measurement methods in terms of dosimetry, and in this study, film irradiation was performed at two different times to measure the dose obtained from two different planning algorithms, and the measurement of each film was performed twice. In a total of four assessments, different results were obtained. For this reason, mean dosimetric measurements were given in this study. In the literature, an uncertainty of approximately 7% for lower doses and above 8% for higher doses was reported, and lower rates of uncertainty were reported using different dosimetry methods such as Metal Oxide Semiconductor Field Effect Transistor and Optically Stimulated Luminescence.[17-20].

Conclusion

Peer-review: Externally peer-reviewed.

Conflict of Interest: All authors declared no conflict of interest.

Financial Support: This study has been supported by the Eskişehir Osmangazi University Scientific Research Projects Unit with project number TSA-2021-2143.

Authorship contributions: Concept - A.Ö.; Design - A.Ö.; Supervision - A.Ö.; Data collection and/or processing - A.Ö., K.D.; Data analysis and/or interpretation - A.Ö., K.D.; Literature search - A.Ö., K.D.; Writing - A.Ö., K.D.; Critical review - A.Ö., K.D.
